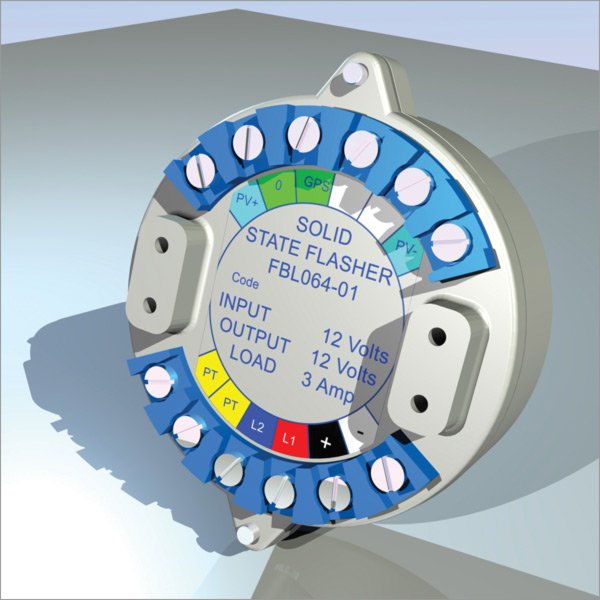

FBL-064 ELECTRONIC FLASHER
TECHNICAL DATA | |
---|---|
LAMP VOLTAGE | 12 V |
MAXIMUM LAMP CURRENT | 3 A |
OPERATING VOLTAGE | 10.5 V TO 18 V |
SELECTABLE SECOND OUTPUT | Lamp charger or 2nd Filament |
IDLE CURRENT | <6 mA |
SELECTABLE RHYTHMS | 64 programmable |
SYNCHRONIZATION | Yes |
TEMPERATURE RANGE | -40° ... -85° C |
WEIGHT | 346 g |
ELECTRIC PROTECTION | Polarity inversion - short circuit - overload |
Tag: aids to navigation
FBL-064 electronic flasher is one of the elements constituting the standard electronic system as self-contained in the FLOATEX lanterns.
This flasher has been studied to grant maximum efficiency and, in installations on buoys, gives full reliability and high resistance.
The electronic schedules of the flasher are lodged in an appropriate aluminium and plastic container from where the electric connections put out.
The whole has extremely reduced dimensions, which make that the flasher can be housed even in very restricted spaces.
Main characteristic of the flasher FBL-064 is the programmability of the light characteristics in most used sequences required by the international IALA standard norms.
