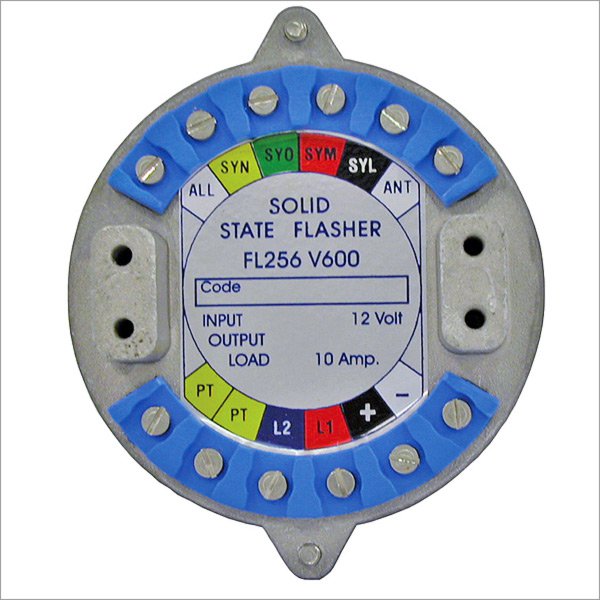

FLCG-256 ELECTRONIC FLASHER
FLCG-256 ELECTRONIC FLASHER
| TECHNICAL DATA | |
|---|---|
| LAMP VOLTAGE | 12 V |
| RATED LAMP CURRENT | 0,2 ...10 A |
| MAXIMUM LAMP CURRENT | 10 A |
| OPERATING VOLTAGE | 10.5 V ... 18 V |
| SELECTABLE SECOND OUTPUT | Lamp charger or 2nd Filament |
| IDLE CURRENT | <10 mA |
| SELECTABLE RHYTHMS | 256 programmable |
| SYNCHRONIZATION | Yes |
| TEMPERATURE RANGE | -40° ... -85° C |
| WEIGHT | 346 g |
| ELECTRIC PROTECTION | Polarity inversion - short circuit - overload |
This electronic flasher is one of the elements constituting the standard electronic system as self-contained in the FLOATEX lanterns.
This flasher has been studied to grant maximum efficiency and, in installations on buoys, gives full reliability and high resistance.
The electronic schedules of the flasher are lodged in an appropriate aluminium and plastic container from where the electric connections put out.
The whole has extremely reduced dimensions, which make that the flasher can be housed even in very restricted spaces.
Main characteristic of the flasher FLCG-256 is the programmability of the light characteristics in all the possible sequences required by the international IALA standard norms.
The flasher FLCG-256 has been studied and manufactured according to U.S.C.G. requirements.
