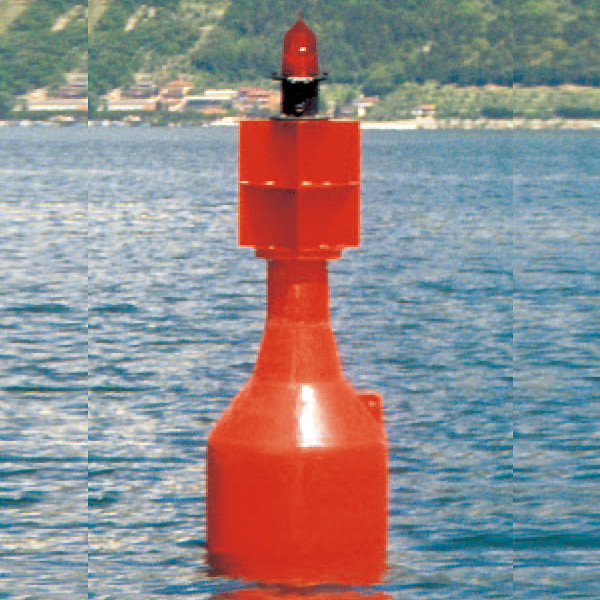

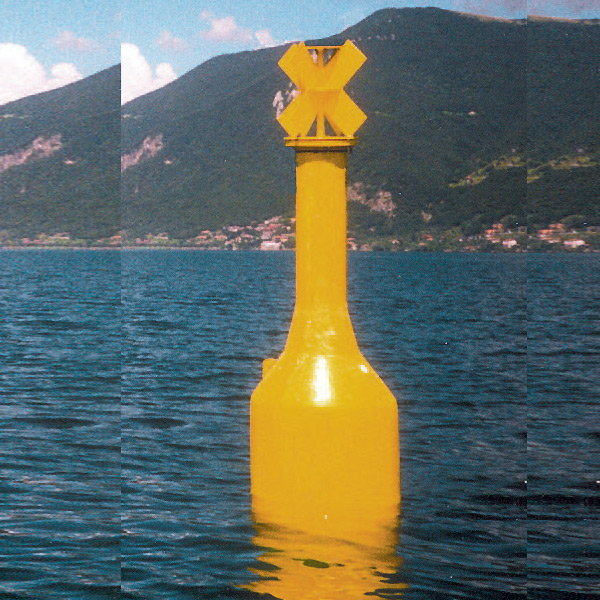

PE 800 LIGHT BUOYS
TECHNICAL DATA | |||
---|---|---|---|
Buoy Body Diameter (nominal) | 800 mm | Buoy Body: | POLYETHYLENE |
Thickness minimum | 13 mm heavy duty construction | Filling: | POLYURETHANE FOAM |
Focal plane | From 1,8 to 2,5 m | Top Mark: | Aluminium (optional) |
Displacement per dm/immersion | 48 Kg | Mooring Plate | S275jr or equivalent |
Draught (Without mooring) | 1350 mm | Colour | ALL IALA |
STANDARD ELECTRICAL EQUIPMENT | Max weigth supported 5 kg | ||

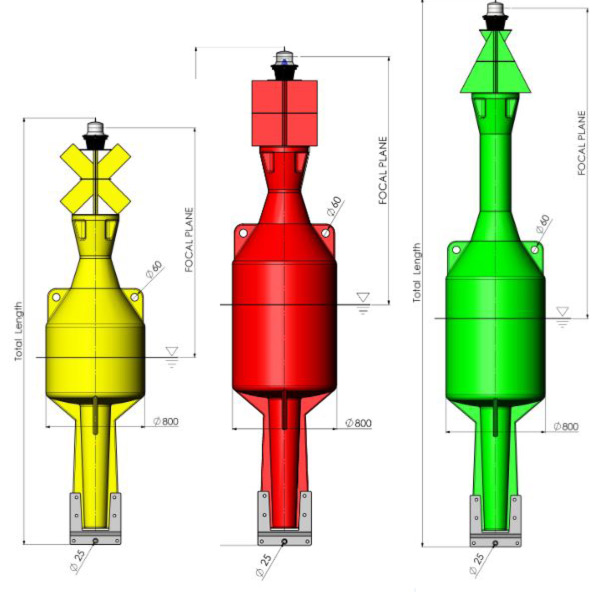

TYPE PE800-D TYPE PE800-S TYPE PE800-L
FOCAL
PLANE1870 FOCAL
PLANE2220 FOCAL
PLANE2825
TOTAL LENGTH 3440 TOTAL LENGTH 3820 TOTAL LENGTH 4420
CHAIN SIZE // CHAIN SIZE 16 CHAIN SIZE 16
MAX SUPPORTED
MOORINGONLY SYNTHETIC MAX SUPPORTED
MOORING115 KG MAX SUPPORTED
MOORING110 KG
SINKER IN SEA WATER 500 KG SINKER IN SEA WATER 500 KG SINKER IN SEA WATER 500 KG
The FLOATEX buoy type PE 800 belongs to the ultimate generation of navigational aids. The buoy start-up project took in consideration the necessity of lowering as much as possible costly maintenance programs, typical of steel buoys, creating a product from enviromentally friendly materials thus reduce waste materials such old paint, zinc coating and sandblasting processes usually related with the traditional steel products.
The PE 800 buoys outer shell are made in UV-stabilized linear virgin polyethylene.
The polyethylene used in the manufacturing process is completely recyclable (ECO-friendly), it's fully compatible with the marine enviroment, and has a high resistance to UV rays.
Being linear has the advantage that it can be melted and hence by hot fusion welding.
The colour pigment is moulded-in and consequently not added as a coating ensuring greater life of the colour and a big help to the enviroment as it never requires additional paintings, avoiding toxic dispersion in the water. Floatex polyethylene requires a minimal maintenance.
The PE 800 buoys are then filled with closed-cell polyurethane foam.
The polyurethane foam ensure great resistance to the leakage water, ensuring unsinkability to the buoy also in case of accidental breaks of the outer shell.
The polyurethane foam is 100 % made and tested before production by our R&D laboratory.
The buoy design, construction and material combinations allow for the PE 800 product to be installed anywhere : open sea, shelterded bays, channels ,rivers and protected areas.
The buoys are usually complete with fixed steel plate on bottom part for the connection with the mooring line.
The top part of the buoys can be equipped with marine top-mark from marine grade aluminium (optional).
The PE 800 buoy normally equipped with a LED self-powered marine lantern.
