PL Buoys 900 SERIES
PL Buoys 900 SERIES
| TECHNICAL DATA | |
|---|---|
| DIMENSIONS | |
| Body Diameter (nominal) | 900 mm |
| Thickness minimum | 7 mm |
| N° of floats | 2 |
| Focal plane | 2.48 m |
| Draught (without mooring) | 2900 mm |
| Displacement per dm/immersion | 65 kg |
| Air weight | 475 kg |
| STANDARD EQUIPMENT | |
| MARINE LANTERN | 5 kg max supported weigth |
| STRUCTURE + RADAR REFLECTOR | GALVANIZED STEEL |
| FLOAT CON9/9 FLOAT CIL 9/9 | SHELL: Rotomoulded polyethylene CORE: Polyurethane foam (All IALA colours avaible) |
| MOORING EYE | GALVANIZED STEEL |
| RECOMMENDED MOORING | |
| Open link chain size | 16 mm |
| Max supported mooring | 158 kg |
| Sinker (in sea water) | 1000 kg |

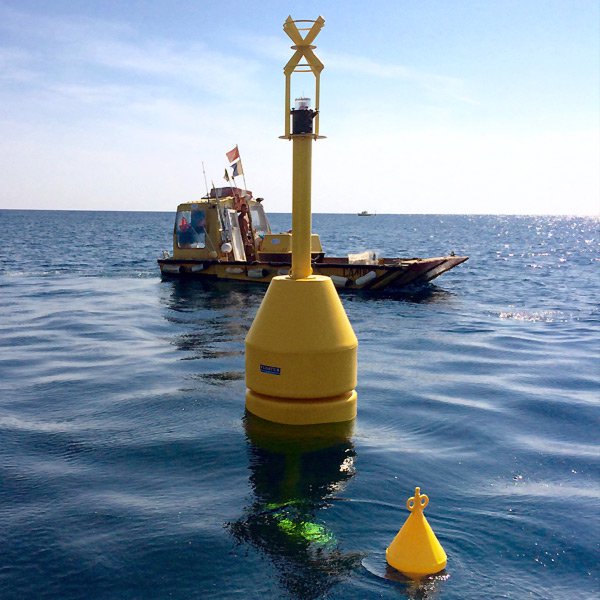

The series PL buoys with small body diameter are considered to be the most versatile of the whole range in as much as offering good stability and resistance with comparatively reduced dimensions.
They can be anchored in open sea for applications requiring a focal plane of less than 2.48 meters from the sea-level.
PL buoys can be provided with latest technology compact self powered marine lantern to achieve light ranges between 1 and 3 nautical miles.
The steel superstructure allows for easy installation of solar panels and rechargeable batteries to make this signalling buoy self-supporting for energy.
The buoy body is filled with expanded foam as a major guarantee for unsinkability.
All metal parts of the buoys are sandblasted, galvanized with metalization and coloured with polyurethane marine paint.
